20/40ft Container Cold Room

Container cold room compressor brand: Bitzer, Copeland and so on.
Container cold room temperature range: -30'C~-10"C.
Container cold room panel: PUR/PUF/PIR Panels.
Evaporator Case: PPGI/Stainless Steel/ Aluminum Box.
Walk in freezer doors: Hinged / Sliding / Swing / Lifting doors.
Cooling Type: Water Cooled/ Air Cooled/ Evaporative Cooled.
Usage: Fresh Keeping/Freezing.
Application scenarios: supermarkets, seafood and meat processing plants, medical laboratories, etc
Certification: CE,ISO,CCC,COC,SABER

Brand: MGREENBELT
Product origin: China
Delivery time: 30 days after advance payment

Information
Video

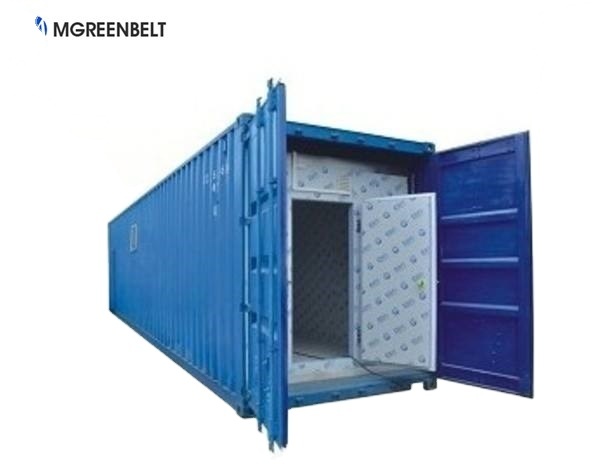

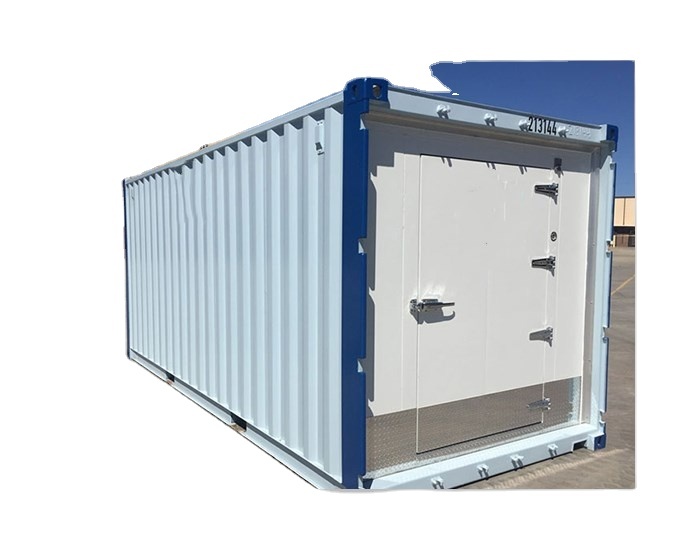

20/40ft Container Cold Room

photobank (80).jpg

Cold Room introduction:

Whether you are looking for Container Cold Room, refrigeration condensing units, insulation panels, evaporator air coolers, MGREENBELT is the go- to professional manufacturer.

Mgreenbelt Container Cold Room, typical temperatures for our cold room range from of -30°C to +15°C. It can store frozen meat, fish, seafood, chicken, ice cream, vegetables, fruits, dairy products, beverages etc. Container Cold Room is staples of logistics warehouse, restaurants, farms, hotels, supermarkets facilities.

Features:

1. Nice appearance :The insulation panel and framework are available in dozens of colors which are to be elected in satisfactory harmony with various styles of buildings.

2. Insulation : Polyurethane or polystyrene with low thermal conductivity and high strength is utilized, achieving good insulation performance.

3. There are Condensing Unit and Unit Cooler refrigeration devices. Different models of temperatures can be selected according to different cold storage.

4. Fast installation.

5. Hygienic conditions of food inside cold stores are up to the standards.

6. Durable building structure, super quality material.

7. The container cold storage is converted from the old container, and the interior is assembled with new PU panels and new refrigeration equipment. It is suitable for tight land resources, and there is no need to build steel structures or simple shelter buildings. Save the cost of cold storage panel construction and machine installation and connection, and it can be used immediately after receipt.

Specifications:

Model			MGH-M
Model			MG02H-M	MG03H-M	MG04H-M	MG05H-M	MG06H-M	MG07H-M	MG09H-M	MG10H-M	MG12H-M	MG15H-M	MG20H-M
Compressor model		Old	2GC2.2Y	2EC3.2Y	2CC4.2Y	4FC5.2Y	4EC6.2Y	4DC7.2Y	4CC9.2Y	4VCS10.2Y	4TCS12.2Y	4PCS15.2Y	4NCS20.2Y
Compressor model		New	2GES-2Y	2EES-3Y	2CES-4Y	4FES-5Y	4EES-6Y	4DES-7Y	4CES-9Y	4VES-10Y	4TES-12Y	4PES-15Y	4NES-20Y
Cooling capacity/ power	Evaporating -5℃	Cooling capacity(kW)	4.61	7.38	10.88	11.8	14.82	17.35	21.6	22.7	27.4	31.3	37.4
	Evaporating -5℃	Power (kW)	1.88	2.66	3.94	4.24	5.36	6.21	7.85	7.77	9.54	10.85	12.89
	Evaporating -10℃	Cooling capacity(kW)	3.78	6.05	8.97	9.67	12.12	14.21	17.7	18.35	22.3	25.3	30.4
	Evaporating -10℃	Power (kW)	1.75	2.47	3.66	3.97	5.0	5.8	7.29	7.14	8.78	9.93	11.87
Applicable temperature(℃)			-5~5
Refrigerant			R404A
Power supply			380V/3P/50Hz
Condenser	Fan quantity		1	2	2	2	2	2	2	2	4	4	4
	Fan voltage(V)		380	380	380	380	380	380	380	380	380	380	380
	Fan power(W)		180×1	180×2	180×2	180×2	180×2	250×2	250×2	250x2	180x4	180×4	180×4
Coupling	Suction coupling(mm)		φ16	φ22	φ22	φ22	φ28	φ28	φ28	φ28	φ35	φ35	φ42
Coupling	Tube coupling(mm)		φ10	φ12	φ12	φ12	φ12	φ16	φ16	φ16	φ16	φ22	φ22
Overall dimensions		L(mm)	620	960	1060	1300	1300	1300	1280	1280	1280	1280	1350
		W(mm)	650	680	680	750	750	750	710	710	710	750	800
		H(mm)	560	460	720	670	770	870	910	910	1210	1460	1410
Mounting dimensions(LxW) (mm)			580×350	920x380	920×380	1260x410	1260x410	1260x410	1000x665	1000x665	1000x665	1000×705	1000x755
