Cold Room Unit with Refrigeration Bitzer Compressor
The storage temperature of low temperature freezer is generally - 22 ~ - 25. It uses a variety of refrigeration equipment, that is, artificial refrigeration, to keep the room at a certain low temperature. Many foods such as ice cream and seafood need to be stored at - 25 ℃ before they will not deteriorate
- MGREENBELT
- China
- 30 days after advance payment
- Information
- Video

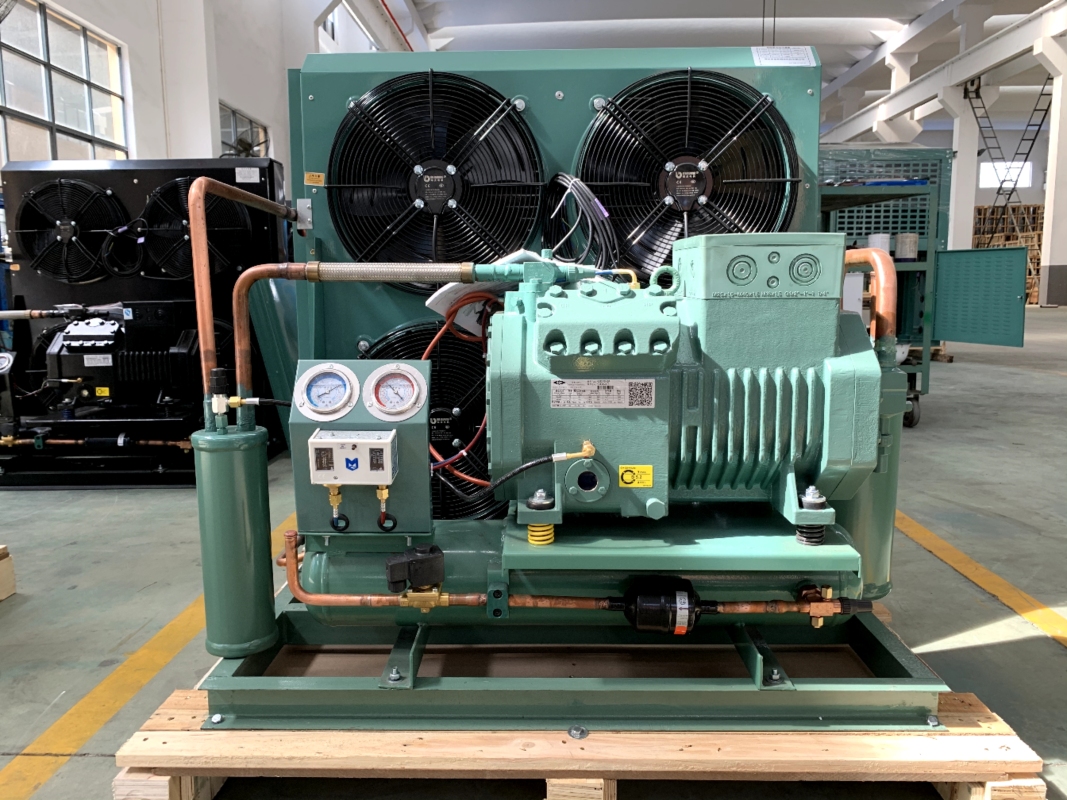

Refrigeration Bitzer Cold Room Unit
Specifications:
| Model | MGH-M | ||||||||||||
| MG02H-M | MG03H-M | MG04H-M | MG05H-M | MG06H-M | MG07H-M | MG09H-M | MG10H-M | MG12H-M | MG15H-M | MG20H-M | |||
Compressor model | Old | 2GC2.2Y | 2EC3.2Y | 2CC4.2Y | 4FC5.2Y | 4EC6.2Y | 4DC7.2Y | 4CC9.2Y | 4VCS10.2Y | 4TCS12.2Y | 4PCS15.2Y | 4NCS20.2Y | |
| New | 2GES-2Y | 2EES-3Y | 2CES-4Y | 4FES-5Y | 4EES-6Y | 4DES-7Y | 4CES-9Y | 4VES-10Y | 4TES-12Y | 4PES-15Y | 4NES-20Y | ||
| Cooling capacity/ power | Evaporating -5℃ | Cooling capacity(kW) | 4.61 | 7.38 | 10.88 | 11.8 | 14.82 | 17.35 | 21.6 | 22.7 | 27.4 | 31.3 | 37.4 |
| Power (kW) | 1.88 | 2.66 | 3.94 | 4.24 | 5.36 | 6.21 | 7.85 | 7.77 | 9.54 | 10.85 | 12.89 | ||
| Evaporating -10℃ | Cooling capacity(kW) | 3.78 | 6.05 | 8.97 | 9.67 | 12.12 | 14.21 | 17.7 | 18.35 | 22.3 | 25.3 | 30.4 | |
| Power (kW) | 1.75 | 2.47 | 3.66 | 3.97 | 5.0 | 5.8 | 7.29 | 7.14 | 8.78 | 9.93 | 11.87 | ||
| Applicable temperature(℃) | -5~5 | ||||||||||||
| Refrigerant | R404A | ||||||||||||
| Power supply | 380V/3P/50Hz | ||||||||||||
| Condenser | Fan quantity | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | |
| Fan voltage(V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | ||
| Fan power(W) | 180×1 | 180×2 | 180×2 | 180×2 | 180×2 | 250×2 | 250×2 | 250x2 | 180x4 | 180×4 | 180×4 | ||
| Coupling | Suction coupling(mm) | φ16 | φ22 | φ22 | φ22 | φ28 | φ28 | φ28 | φ28 | φ35 | φ35 | φ42 | |
| Tube coupling(mm) | φ10 | φ12 | φ12 | φ12 | φ12 | φ16 | φ16 | φ16 | φ16 | φ22 | φ22 | ||
| Overall dimensions | L(mm) | 620 | 960 | 1060 | 1300 | 1300 | 1300 | 1280 | 1280 | 1280 | 1280 | 1350 | |
| W(mm) | 650 | 680 | 680 | 750 | 750 | 750 | 710 | 710 | 710 | 750 | 800 | ||
| H(mm) | 560 | 460 | 720 | 670 | 770 | 870 | 910 | 910 | 1210 | 1460 | 1410 | ||
| Mounting dimensions(LxW) (mm) | 580×350 | 920x380 | 920×380 | 1260x410 | 1260x410 | 1260x410 | 1000x665 | 1000x665 | 1000x665 | 1000×705 | 1000x755 | ||
Sample:
Polyurethane (pu) panel
Scroll compressor condensing Unit
Semi-sealed piston compressor Condensing Unit
