Walk In Cooler For Vegetables / Fruits / Drinks
The panel connection adopts eccentric lock type, which has the characteristics of good air tightness, good sealing, good heat preservation effect, convenient disassembly and flexible movement. The cold storage can be assembled in different places in different sizes and capacities.
- MGREENBELT
- China
- 30 days after advance payment
- 100 sets
- Information
- Video
Walk In Cooler For Vegetables / Fruits / Drinks
Cold Room introduction:
The cold storage is assembled by PU board. The cold storage can be flexibly and conveniently combined when setting up. The production mold adopts special prefabricated design, the standard width is 960mm, 1180mm and other specifications. The panel adopts the design configuration sealant, to ensure that the leakage in the cold storage is cold and moistureproof, so that the appearance of the cold storage board is more beautiful and generous, to avoid the inconvenience of disassembly and assembly between the panel because of the impact of the glass sealant seal. Cold storage at the same time has good air tightness and heat insulation effect, easy disassembly, flexible movement and other characteristics.
Product features:
1. Nice appearance :The insulation panel and framework are available in dozens of colors which are to be elected in satisfactory harmony with various styles of buildings. |
2. Insulation : Polyurethane or polystyrene with low thermal conductivity and high strength is utilized, achieving good insulation performance. |
3. There are Condensing Unit and Unit Cooler refrigeration devices. Different models of temperatures can be selected according to different cold storage. |
4. Fast installation. |
5. Hygienic conditions of food inside cold stores are up to the standards. |
6. Durable building structure, super quality material. |
1. Nice appearance :The insulation panel and framework are available in dozens of colors which are to be elected in satisfactory harmony with various styles of buildings.
2. Insulation : Polyurethane or polystyrene with low thermal conductivity and high strength is utilized, achieving good insulation performance.
3. There are Condensing Unit and Unit Cooler refrigeration devices. Different models of temperatures can be selected according to different cold storage.
4. Fast installation.
5. Hygienic conditions of food inside cold stores are up to the standards.
6. Durable building structure, super quality material.
Specifications data:
Model | MGH-M | ||||||||||||
MG02H-M | MG03H-M | MG04H-M | MG05H-M | MG06H-M | MG07H-M | MG09H-M | MG10H-M | MG12H-M | MG15H-M | MG20H-M | |||
Compressor model | Old | 2GC2.2Y | 2EC3.2Y | 2CC4.2Y | 4FC5.2Y | 4EC6.2Y | 4DC7.2Y | 4CC9.2Y | 4VCS10.2Y | 4TCS12.2Y | 4PCS15.2Y | 4NCS20.2Y | |
New | 2GES-2Y | 2EES-3Y | 2CES-4Y | 4FES-5Y | 4EES-6Y | 4DES-7Y | 4CES-9Y | 4VES-10Y | 4TES-12Y | 4PES-15Y | 4NES-20Y | ||
Cooling capacity/ power | Evaporating -5℃ | Cooling capacity(kW) | 4.61 | 7.38 | 10.88 | 11.8 | 14.82 | 17.35 | 21.6 | 22.7 | 27.4 | 31.3 | 37.4 |
Power (kW) | 1.88 | 2.66 | 3.94 | 4.24 | 5.36 | 6.21 | 7.85 | 7.77 | 9.54 | 10.85 | 12.89 | ||
Evaporating -10℃ | Cooling capacity(kW) | 3.78 | 6.05 | 8.97 | 9.67 | 12.12 | 14.21 | 17.7 | 18.35 | 22.3 | 25.3 | 30.4 | |
Power (kW) | 1.75 | 2.47 | 3.66 | 3.97 | 5.0 | 5.8 | 7.29 | 7.14 | 8.78 | 9.93 | 11.87 | ||
Applicable temperature(℃) | -5~5 | ||||||||||||
Refrigerant | R404A | ||||||||||||
Power supply | 380V/3P/50Hz | ||||||||||||
Condenser | Fan quantity | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | |
Fan voltage(V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | ||
Fan power(W) | 180×1 | 180×2 | 180×2 | 180×2 | 180×2 | 250×2 | 250×2 | 250x2 | 180x4 | 180×4 | 180×4 | ||
Coupling | Suction coupling(mm) | φ16 | φ22 | φ22 | φ22 | φ28 | φ28 | φ28 | φ28 | φ35 | φ35 | φ42 | |
Tube coupling(mm) | φ10 | φ12 | φ12 | φ12 | φ12 | φ16 | φ16 | φ16 | φ16 | φ22 | φ22 | ||
Overall dimensions | L(mm) | 620 | 960 | 1060 | 1300 | 1300 | 1300 | 1280 | 1280 | 1280 | 1280 | 1350 | |
W(mm) | 650 | 680 | 680 | 750 | 750 | 750 | 710 | 710 | 710 | 750 | 800 | ||
H(mm) | 560 | 460 | 720 | 670 | 770 | 870 | 910 | 910 | 1210 | 1460 | 1410 | ||
Mounting dimensions(LxW) (mm) | 580×350 | 920x380 | 920×380 | 1260x410 | 1260x410 | 1260x410 | 1000x665 | 1000x665 | 1000x665 | 1000×705 | 1000x755 |

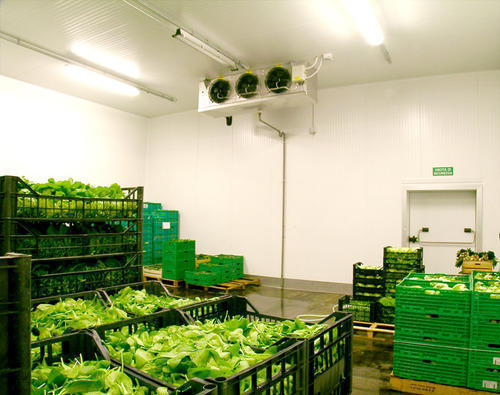

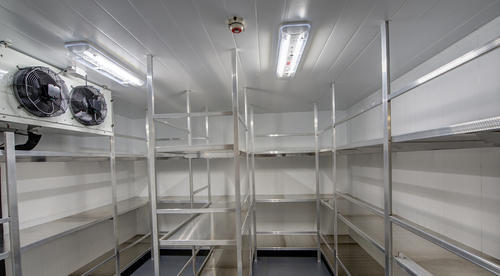

Pictures show:
Copeland condensing Unit
Bitzer Condensing Unit
